Small Size Offline PCB Router

This machine is a floor standing automatic PCBA routing machine, it’s single platform operation, using PC for programming, automatic bottom routing and bottom dust collecting.The machine using high speed routing spindle, fix the PCBA with jig, to separate the stamp hole, curve PCB, and other irregular connected PCBs.
Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1000
Product serial number
Category: PCB-depaneling Machine
Quantity
-
+
Stock:
Advisory Message
Related introduction
Parameters

Introduction

This machine is a floor standing automatic PCBA routing machine, it’s single platform operation, using PC for programming, automatic bottom routing and bottom dust collecting.The machine using high speed routing spindle, fix the PCBA with jig, to separate the stamp hole, curve PCB, and other irregular connected PCBs.

Features

1, Offline automatic separating.

2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.

3, Customized fixtures.

4, PC and CCD visual system.

5, Programming with compensation and dust collection.

6, Available for max 410-510mm size PCBA.

7, Flexible for cutting two different type products.

8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).

Technical details



Model AR-7 AR-7 mini
Power supply AC380V, 50/60Hz, 3KW
Working size 50x50~410x460mm(max) 50x50~260x310mm(max)
Loading mode Manual
Cutting spindle/speed 5000~60,000 rpm
PCB thickness 0.4-4mm
Separating speed 1-100mm/s
Cutting accuracy ±0.05mm
Fixing type Fixtures
Programming Vision teaching, inline programming
Milling kit φ0.8~φ3.0 right side rotation, shank Tungsten steel
Dust collection method Bottom dust collection
Dust collector 3 phase, 380V, 1.2KW
Noise <75dB
Control system Industrial PC
Spindle brand Germany brand, Sycotec 4025
Servo motor A5 series
Motion control 4 axis motion control board
Lead screw C5 grinding screw lead
Linear guide P rank silence guide
Camera Germany brand Imaging 40W industrial camera

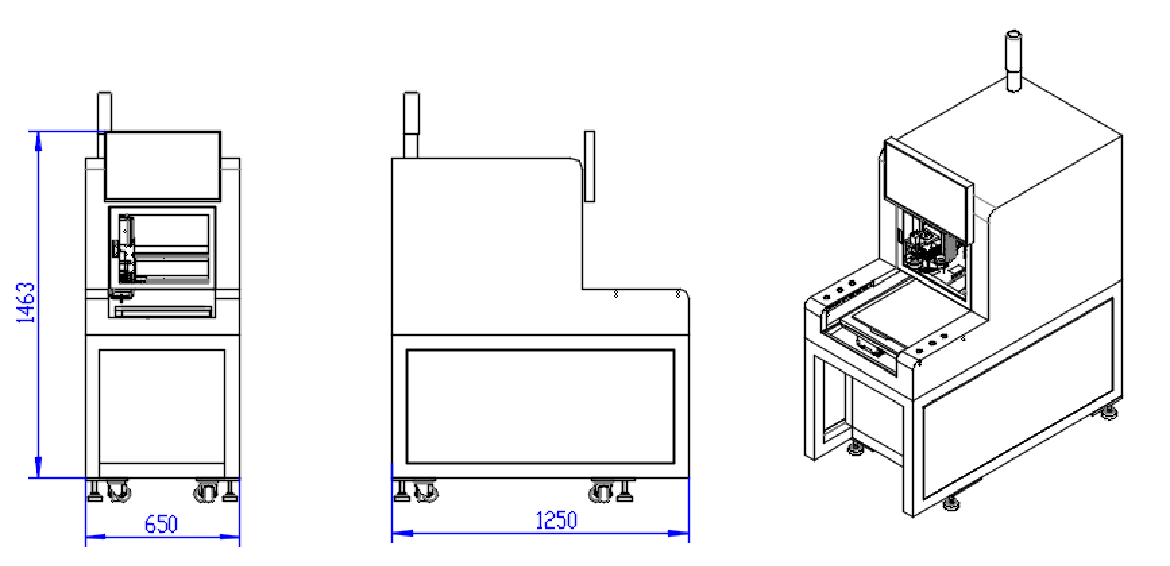

Machine size 700*800*930 mm 500*650*930mm
Screen 17inch
