Vertical Buffer
Keyword:
HSTECH
hiddenValue
- Technical Parameter
- Description and Features
- Application
-
Description
This unit is used as a buffer between SMD machine and Inspection equipment
Features
1.Use friendly soft touch screen control panel.2.FIFO,LIFO,Loader, unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4.Inner PCB rack to stock PCBs,Max can stock 25pcs PCBs.
5. Machine Panel will show NG or OK PCB for each layer.
6.Upper conveyor platform for double checking NG PCBs.
7. Threshold’s system provided.
8. SMEMA compatible.
Technical details
Transport height
910±20mm
Transportation direction
L~R, or R~L
Board collecting
Lifting PCB rack
Conveyor transporting speed
Adjustable
Rail fixed side
Front side or rear side
Operation side
Front side
PCB thickness
Min 0.6mm
Pitch selection
1-4(10mm pitch)
Power supply
220V,50/60Hz,±10%
Power
0.05kW
PCB stock capacity
Max 25pcs
Magazine
No
Signal
SMEMA
Options
Automatic width adjustment.
Specification
Model
HS-HC250
HS-HC330
HS-HC390
HS-HC460
Efficient PCB length
50*50~350*250mm
50*50~455*330mm
50*50~530*390mm
50*50~530*460mm
Machine dimension
1250*1200*1600mm
1460*1360*1600mm
1610*1480*1600mm
1610*1620*1600mm
Weight
200kg
230kg
270kg
300kg

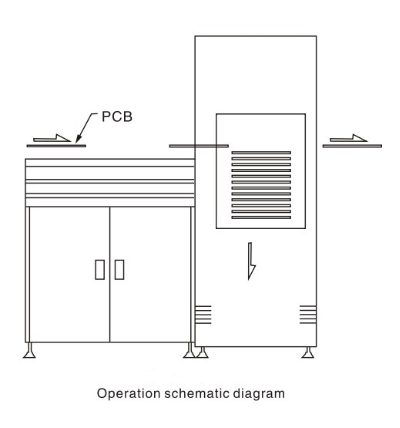

Operation Diagram
