Offline PCB Router

Number of views:
1000

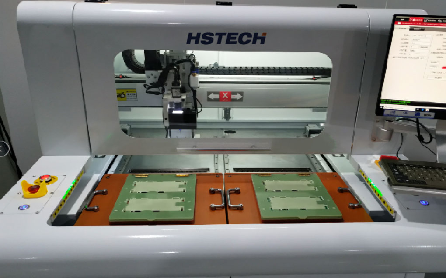

Offline PCB Router

PCB Router,also called automatic pcb cutting machine, with high speed spindle drying milling kit to cut high density pcba andother material substrate.
Retail price
0.0
Yuan
Market price
0.0
Yuan
Number of views:
1000
Product serial number
Category: PCB-depaneling Machine
Quantity
-
+
Stock:
Advisory Message
Related introduction
Parameters

High efficiency

High precision

High flexible

Full electric control, no CAD requirement

High stability, easy to maintenance

Esay to operation,short changeover time

Designed for middle/small size PCBA

Specification



Model RM-288 RM-388
Structure Single Spindle,dual work platforms
Machine Size(mm) 1000*1200*1550
Gross Weight 700kg
Dust collector size(mm) 625*600*1600
Dust collector power 3HP/2.2kw
Dust collector Weight 130kg
Dust Collection method Bottom collection
Work platform size 300*400mm
Platform driving type Double rotary platform,precision slicer with 3phase motor inverter
Driving system X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter
Routing Spindle 5000~50000rpm,auto cooling 5000~60000rpm,auto cooling
Cutting speed 1-100mm/s
Cutting accuracy ±0.05mm
Repeat accuracy ±0.02mm
Axis moving speed 800mm/s
Z axis moning method Screw driven,dual guide
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Tool life control Software program control
Active protective function safty light curtain
Security door Manual door
Error alaum Yes
Program method Self programing,camera controlled by keyboard and mouser



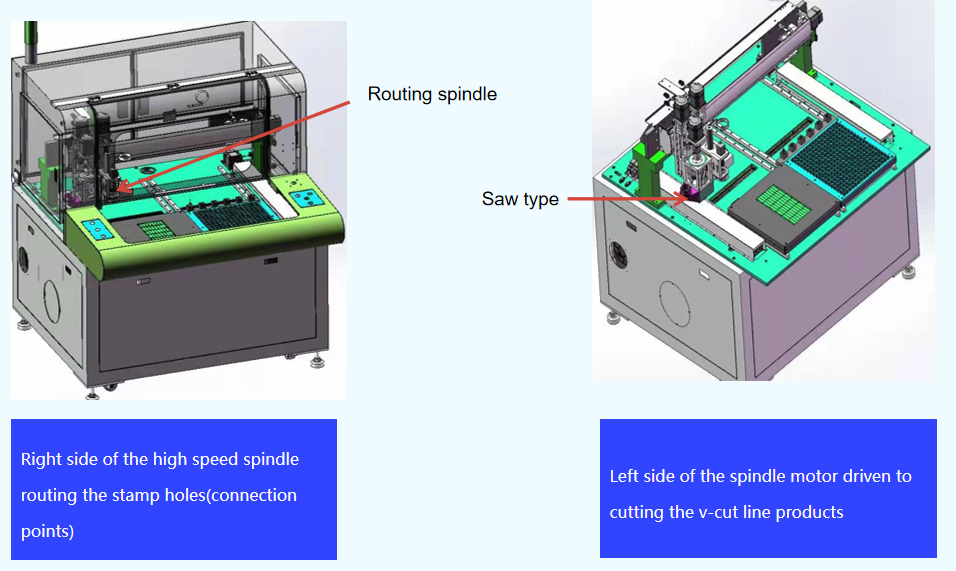

Product Overview

PCB Router,also called automatic pcb cutting machine, with high speed spindle drying milling kit to cut high density pcba andother material substrate.

Advantages



1,Standard configuration high speed Germany Sycotec spindle

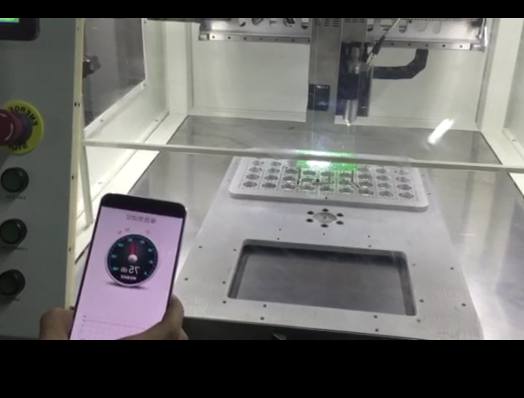

2, Ultra low working noise(less than 75dB)


Machine Size(mm)


Friendly Operating System



Windows7/10 English version operating system,simple for debugging and operation.


Features


Super Vision System

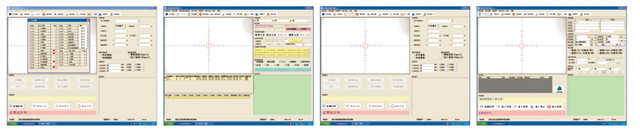

Using high resolution CCD camera allow the user to edit the cutting path easily with it's automatic calibration feature resulting to a very accurate cutting operation.

Movement System


The X,Y and Z axis are made of grinding grade precision ball guide screw and driven by AC servo motor, achieve a good and stable movement performance, with frequency up to 1K Hz high speed response time and self adopting shock reduction filters.

Innovative Hanging Router Kit




The design of the driving shaft located in the center, and slave on both sides, which ensure the stability and accuracy,results to a harmonious structure and compacy size.(50% smaller than industry standard).

Rotary workbench structure

The workbench design is driven by a high pulling torque segmentation(180degree),provides more precision and stability than cylinder driven machines workbenches.This innovative rotary workbench design also allows simultaneous operation of defferent cutting algorithms on both the A and B workbench,thereby reducing changeover idle capacity and maximizing productivity.


Dust collection system

The dust collection system and antistatic blower mantains the system clean during operation,ultra low noise.

Blade management

Allowing the cutting blade setup by stages greatly reduces the cost for consumables.

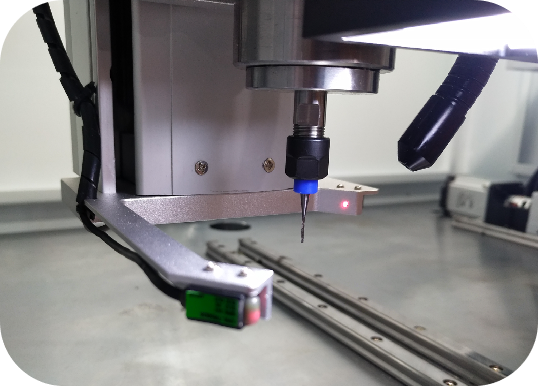

Cutter System

The milling cutter is driven by a high speed spindle with the advantages of a reduced cutting force, high accuracy,low noise and suitable for all the curve pcbs,like round,straight line,L or U type,squares and arc shapes.

Self recovery diagnostic system

The self diagnostic system allows easy troubleshooting of malfuctions during production and reduces downtime.
